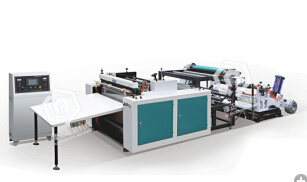

Non-woven cross-cutting machine

Category:

一. Performance and characteristics:
This machine is suitable for cutting all kinds of non-woven fabrics, OPP, PVC, PET, paper, paper-plastic composite, color printing composite and other large-scale packaging materials. This machine uses a servo motor (or stepper motor) to control the fixed-length cutting. The transmission system adopts centralized control such as pneumatic and photoelectric sensors. This machine integrates light, electricity and gas, easy to operate, high cutting precision, mechanical stability, and low noise. (Pneumatic feeding can be selected) The motor frequency conversion speed regulation, automatic counting, alarm stop, magnetic powder or friction sheet manually adjust the tension function.

Message

Products

E-mail:308613001@qq.com

Product Description

一. Performance and characteristics:
This machine is suitable for cutting all kinds of non-woven fabrics, OPP, PVC, PET, paper, paper-plastic composite, color printing composite and other large-scale packaging materials. This machine uses a servo motor (or stepper motor) to control the fixed-length cutting. The transmission system adopts centralized control such as pneumatic and photoelectric sensors. This machine integrates light, electricity and gas, easy to operate, high cutting precision, mechanical stability, and low noise. (Pneumatic feeding can be selected) The motor frequency conversion speed regulation, automatic counting, alarm stop, magnetic powder or friction sheet manually adjust the tension function.

This machine is suitable for cutting all kinds of non-woven fabrics, OPP, PVC, PET, paper, paper-plastic composite, color printing composite and other large-scale packaging materials. This machine uses a servo motor (or stepper motor) to control the fixed-length cutting. The transmission system adopts centralized control such as pneumatic and photoelectric sensors. This machine integrates light, electricity and gas, easy to operate, high cutting precision, mechanical stability, and low noise. (Pneumatic feeding can be selected) The motor frequency conversion speed regulation, automatic counting, alarm stop, magnetic powder or friction sheet manually adjust the tension function.

model	HQJ-800	HQJ-1000	HQJ-1200
Maximum cutting width	750mm	950mm	1150mm
Maximum unwinding diameter	￠800mm	￠800mm	￠800mm
Cut length	200-1000mm	200-1000mm	200-1000mm
Cutting speed	30-130 knife times/min	30-130 knife times/min	30-130 knife times/min
Cutting accuracy	±0.2mm	±0.2mm	±0.2mm
Range of raw materials	40-500g/m2	40-500g/m2	40-500g/m2
Conveying stack height	Max. 500mm	Max. 500mm	Max. 500mm
Total power	4kw	5kw	6kw
Machine weight	1200kg	1500kg	1800kg
Dimensions	To be determined	To be determined	To be determined
